DRY CHEMICAL POWDER ABC TYPE
DRY CHEMICAL POWDER ABC TYPE

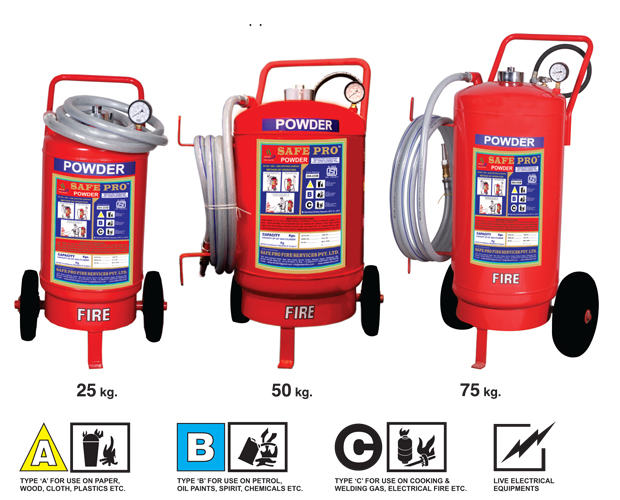

Fire And Web wheeled exnguishers are available in ABC Powder and offer exceponal value for money as well as the high quality that you would expect from Fire And Web fighng products. Fire And Web wheeled exnguishers are ideal for use in a wide range of commercial and industrial applicaons.
| CAPACITY | 25 KG OUTSIDE CARTRIDGE TYPE | 25 KG INSIDE CARTRIDGE TYPE | 50 KG OUTSIDE CARTRIDGE TYPE | 75 KG OUTSIDE CARTRIDGE TYPE |
|---|---|---|---|---|
| TYPE | WHEELED DCP ABC TYPE | WHEELED DCP ABC TYPE | WHEELED DCP ABC TYPE | WHEELED DCP ABC TYPE |
| IS NO. | IS 16018 | IS 16018 | IS 16018 | IS 16018 |
| FIRE RATING | 20A 233B | 20A 233B | 20A 233B | 20A 233B |
| OPERATING TEMPERATURE | -30ºC to +55ºC | -30ºC to +55ºC | -30ºC to +55ºC | -30ºC to +55ºC |
| MIN.JET LEANGTH(IN MTRS) | MORE THAN 6 MTRS | MORE THAN 6 MTRS | MORE THAN 6 MTRS | MORE THAN 6 MTRS |
| DISCHARGE PERCENTAGE | 85% | 85% | 85% | 85% |
| DISCHARGE TIME | MORE THAN 30 sec | MORE THAN 30 sec | MORE THAN 30 sec | MORE THAN 30 sec |
| CHARGE PRESSURE | 1.8 MPA | 1.8 MPA | 1.8 MPA | 1.8 MPA |
| TEST PRESSURE | 3.0 MPA | 3.0 MPA | 3.0 MPA | 3.0 MPA |
| EXTINGUISHERS MEDIA | DRY POWDER AS PER IS 14609 | DRY POWDER AS PER IS 14609 | DRY POWDER AS PER IS 14609 | DRY POWDER AS PER IS 14609 |
| EXPELLANT | CO2 | CO2 | CO2 | CO2 |
| LENGHTH OF HOSE PIPE | 2 MTRS | 2 MTRS | 4 MTRS | 4 MTRS |
