FIRE HYDRANT SYSTEM

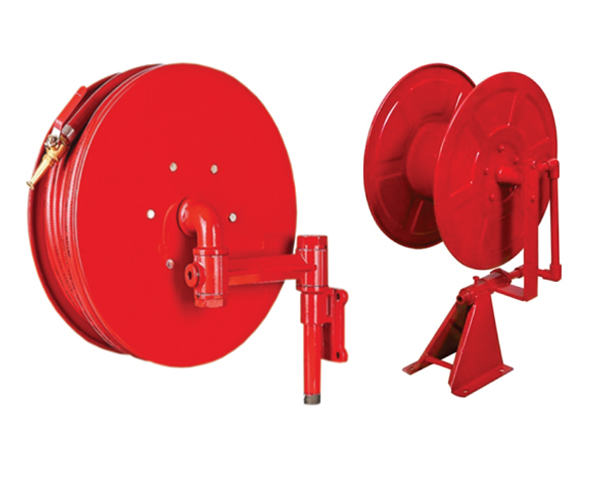

SWINGING TYPE WALL MOUNTED FIRST AID HOSE REEL DRUM
Technical Specification
Conforming To : IS:884/1958
Size : Inlet:1"ThreadedInlet Connection
Type : Swinging 180' Wall Mounting
Outlet : 3/4",1",1-1/2" outlet connection for House to accommodate
30/36/40Mtrs. Hose
| HUB SIDE & WALL BRACKET | M.S. SHEET OF IS : 513 |
|---|---|
| SWIVEL JOINT | STEEL OF IS : 1239 PART 1 |
| NOZZLE | IS : 8090 |
| HOSE REEL TUBING | THERMOPLASTIC HOSE CONFIRMING TO IS : 12585 RUBBER HOSE CONFIRMING TO IS : 444 |
Performance Test
Hydraulic Test : Tested at 21 Kgf/cm2
Range & Water Flow rate test at 7Kgf/cm2
(A)Discharge : 24LPM
(B)Range(Jet Length) : 6Mtr (Min) Halogram : Sticker Stuck On Wheel
