FIRE HYDRANT SYSTEM

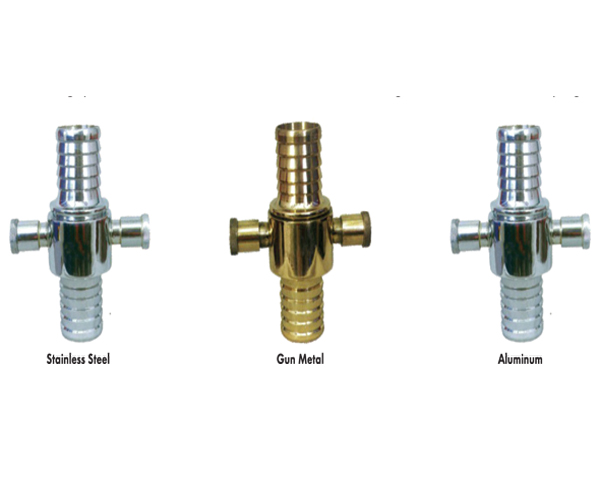

INSTANTANEOUS MALE/FEMALE TYPE COUPLING
Technical Specification
Size : 63 mm
Material : Stainless Steel/Gun Metal/Aluminum Alloy
Outlet : Female Instantaneous
Conforming Specification : IS:9003/1993
| TYPE OF MATERIAL | STAINLESS STEEL | GUN METAL | ALUMINUM |
|---|---|---|---|
| BODY, ASSEMBLY | STAINLESS STEEL IS : 3444 | LTB 2 IS : 318 | IS 617 |
| RUBBER WASHER | IS : 937 (TYPE-A) | IS : 937 (TYPE-A) | IS : 937 (TYPE-A) |
| SPRING | STAINLESS STEEL IS : 6528 | PHOSPHORUS WIRE IS : 7608 | STAINLESS STEEL IS : 6528 |
Performance Test
Hydraulic Test : Tested at 21 Kgf/cm2
Finish : Natural Polished
Halogram : Sticker Stuck On Coupling
HYDRANT SYSTEM
