FIRE HYDRANT SYSTEM

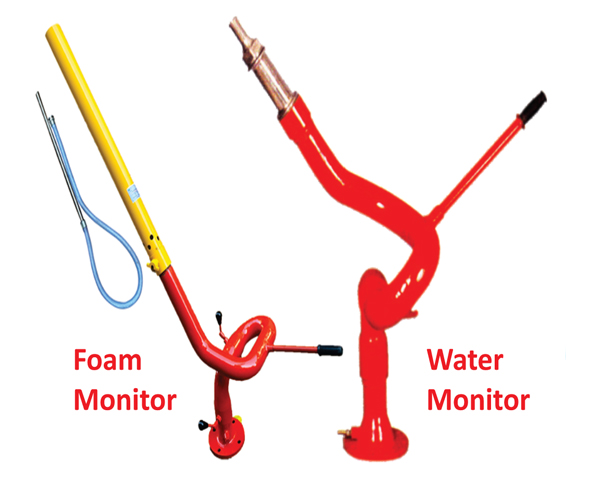

WATER AND FOAM MONITOR
Technical Specification
| DESIGN & CONSTRUCTION | AS PER IS : 8442 |
|---|---|
| MATERIAL | SEAMLESS MILD STEEL TUBES |
| SIZE OF MONITOR | 63 MM |
| SIZE OF INLET FLANGE | 80 MM |
| DISCHARGE CAPACITY | 1750 LPM |
| HORIZONTAL THROW | 50-55 METERS |
| ROTATION | 360° |
| ELEVATION | 58° TO 30° |
| JOINT | SWIVEL TYPE (GUN-METAL) |
| JET SPRAY NOZZLE | GUN METAL OR ALUMINIUM |
| OPERATIVE PRESSURE | 7 BAR |
| LEAKAGE PRESSURE | TO WITHSTAND PRESSURE OF 23 BAR |
HYDRANT SYSTEM
